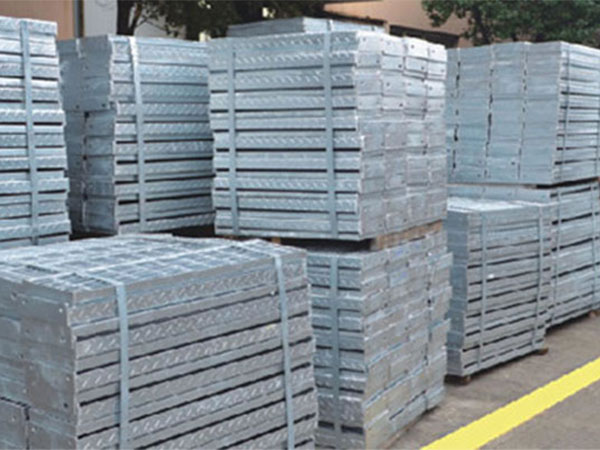

30mm I-Beam Welded Steel Bar Grating
Next product
Heavy Duty Welded Steel Bar Grating

40mm I-Beam Welded Steel Bar Grating

Welded steel bar grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Welded bar grating is resistance welded to create a rugged, one-piece constructed panel. Beststeelgratings fabricates grating into specific widths, lengths, curved shapes, incorporates hinged panels, and different finishes to meet project requirements.

Categories: ,
Description

Description

Model Width of steel bar Thickness of flange (mm) Web thickness (mm) Width of flange(mm) Weight (kg/m2) Load deflection Span (mm)
200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
JG757/40/50I 75 7 4 12 101 U 4845 1211 538 302 193 134 98 75 75 59 48 40 33 28 24
D 0.09 0.37 0.83 1.47 2.29 3.31 4.49 5.89 5.89 7.44 9.27 11.35 13.33 15.66 18.16
JG757/40/100I 95.6 C 484 242 161 121 96 80 69 60 60 53 48 44 40 37 34
D 0.07 0.29 0.66 1.18 1.83 2.64 3.63 4.72 4.72 5.97 7.45 9.13 10.85 12.83 14.83
JG657/40/50I 65 7 4 10 88.5 U 3646 911 405 227 145 101 74 56 56 45 36 30 25 21 18
D 0.11 0.42 0.95 1.69 2.64 3.83 5.21 6.75 6.75 8.72 10.68 13.1 15.54 18.1 21
JG657/40/100I 83.2 C 364 182 121 91 72 60 52 45 45 40 36 33 30 28 26
D 0.08 0.34 0.76 1.36 2.1 3.04 4.2 5.44 5.44 6.92 8.6 10.55 12.54 14.98 17.5
JG607/40/50I 60 7 4 10 78.9 U 3162 790 351 197 126 87
